Newest K10000l Glass Lined Reactor
Release time:
Jun 03,2025
Information Summary:
| Parameters Table | Vessel | Jacket | |||
| Full capacity area m3 | 12.4 | ||||
| Heat exchange area m2 | / | 21.8 | |||
| Design pressure Mpa | 0.4 | 0.6 | |||
| Design temperature °C | 200 | 200 | |||
| Steel plate material | 245R | Q235B | |||
| Reference weight Kg | 7920(Without transmission equipment) | ||||
| High voltage test (kv) | 20 | ||||
| Reducer-helical gear | BF107 | BF97 | |||
| Motor-asynchronous explosion-proof type KW | YB11 | ||||
| Frame | DJ90 | ||||
| Agitator | Anchor, Gate stirrer:63~85r/m Paddle, Impeller:85~130r/m | ||||
| Use medium | Resistant to corrosion of various concentrations of inorganic acids, organic acids, organic solvents and weak bases (except for hydrofluoric acid, fluoride ion-containing media, concentration> 30%, temperature> 180% concentrated phosphoric acid and strong alkali) | ||||
Note: When the working temperature is less than 0°C or the design pressure is greater than 0.4, please specify when ordering | |||||

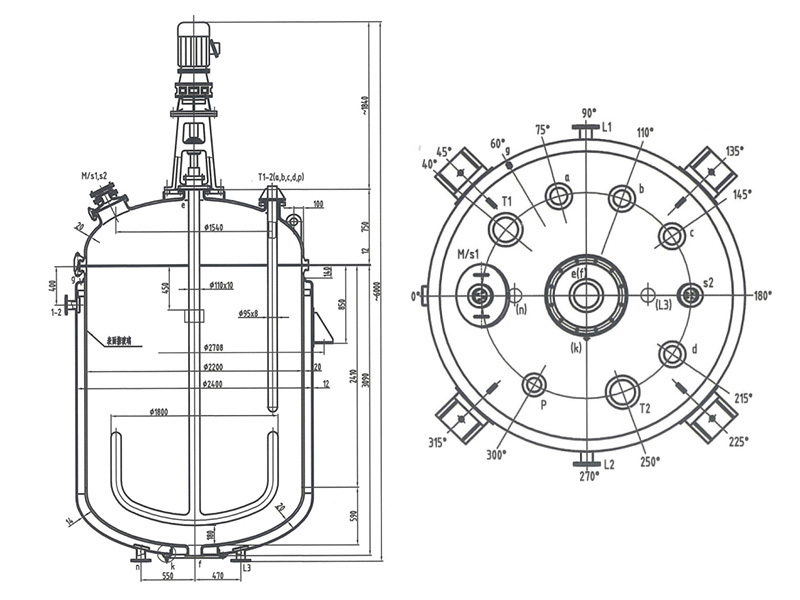

IV nozzle table | |||||
Symbol | Nominal size | Connecting flange standard | Purpose | ||
M/sl | 400*300/125 | / | Manhole (with sight glass) | ||
a | DN150-B | PN1.0HG/T2105-2017 | Spare port | ||
b | DN150-B | PN1.0HG/T2105-2017 | Spare port | ||
c | DN150-B | PN1.0HG/T2105-2017 | Spare port | ||
d | DN150-B | PN1.0HG/T2105-2017 | Spare port | ||
e | DN200-A | PN1.0HG/T2105-2017 | Stirrer port | ||
f | DN150-A | PN1.0HG/T2105-2017 | Discharge port | ||
p | DN125-B | PN1.0HG/T2105-2017 | Thermometer port | ||
s2 | DN125-A | / | Mirror port | ||
T1~2 | DN200-B | PL200-(B) -10RF HG/T-2592- 2009 | Jacket inlet (outlet) | ||
L1~3 | DN80 | PL80(B) -10RF | Jacket inlet (outlet) | ||
n | DN80 | / | Exhaust vent | ||
g | G3/4" | / | Discharge outlet | ||
k | G1/2" | / | Spare port | ||
The Newest K10000L Glass Lined Reactor is an advanced solution for large-scale chemical processing, offering exceptional durability and performance. Designed for industries such as pharmaceuticals, chemicals, and food production, the Newest K10000L Glass Lined Reactor features a high-quality enamel coating that ensures excellent corrosion resistance and thermal stability. With a 10,000-liter capacity, it is ideal for handling large batches efficiently while maintaining product purity. The smooth, non-stick interior surface of the Newest K10000L Glass Lined Reactor allows for easy cleaning and reduces the risk of contamination. Its robust design supports high-pressure and high-temperature processes, delivering reliable and consistent results. Engineered for modern industrial needs, the Newest K10000L Glass Lined Reactor ensures long service life, low maintenance, and high operational safety. It is the perfect choice for manufacturers seeking dependable performance and superior chemical resistance in every production cycle.
